Root Management
Effective root management is crucial for urban tree planting, promoting healthy tree growth while safeguarding pavements, utilities, and other underground infrastructure. TreeTube™ provides innovative root management solutions that completely separate the green utility system from adjacent underground infrastructure, ensuring their harmonious coexistence beneath the city’s pavements.

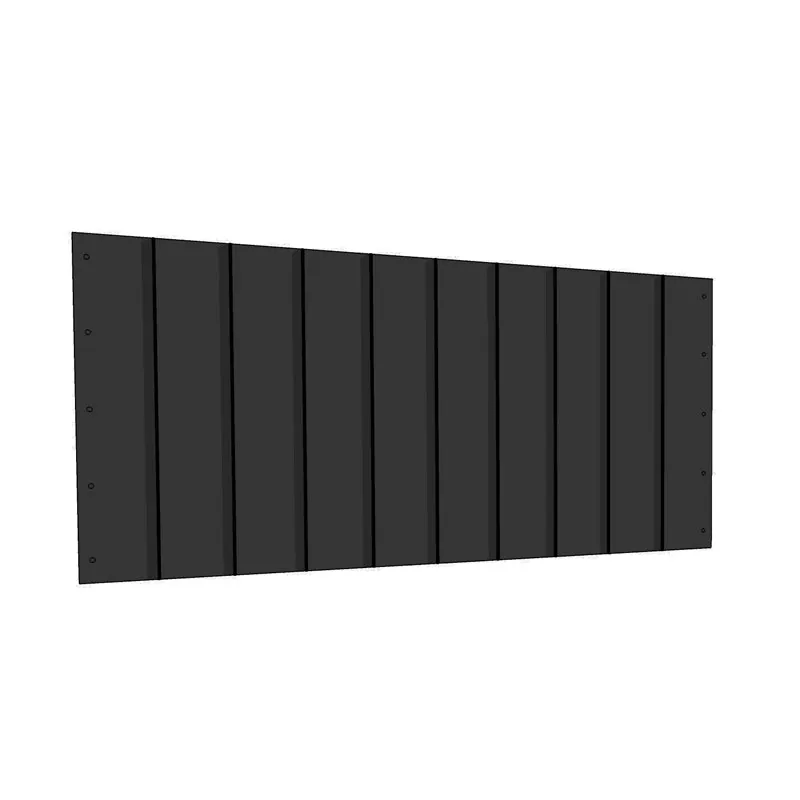

RootGuide Panel
The functional, easy-to-use RootGuide is designed to create a barrier and block roots from penetrating through, while directing them to the desired position in the urban topography.
The height and length can be adjusted to suit the planner’s specifications, and multiple RootGuide panels can be easily connected to create additional length.
- Material: HDPE
- Material Thickness: 6-8 mm
- Height (Upon Request): 300-2000 mm
- Length: Upon request

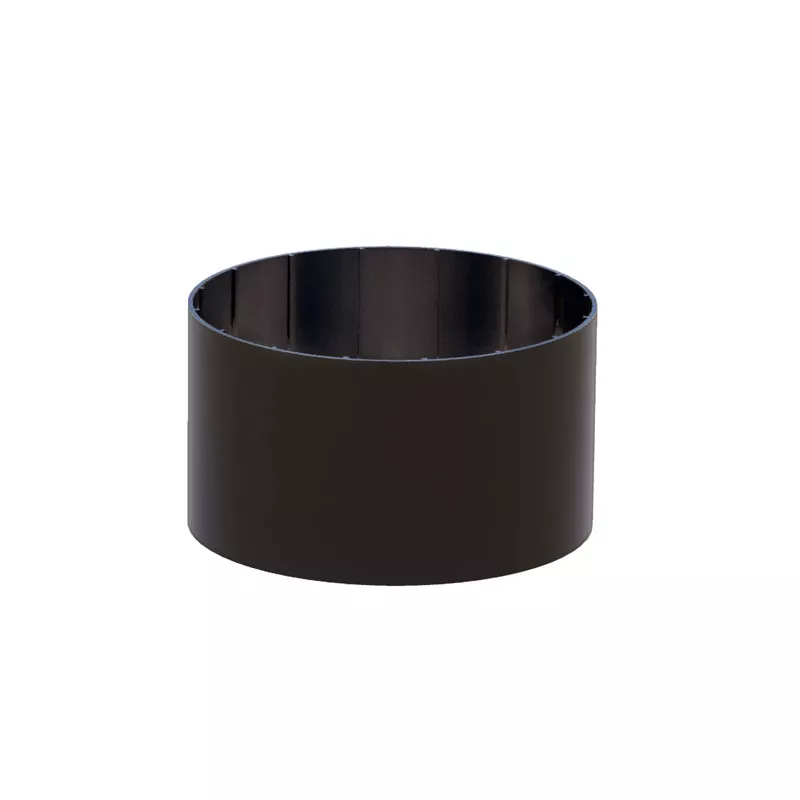

Round Root Guide
The Round Root Guide is uniquely designed to direct the tree roots, while preventing curbstone and utility damage. The system offers a built-in aeration and irrigation system, and protects the underground utilities while ensuring that all of the urban tree’s needs for healthy growth and development are met.
- Material: HDPE
- Material Thickness: 6-8 mm
- Diameter: 600-1500 mm
- Height: 600-300 mm

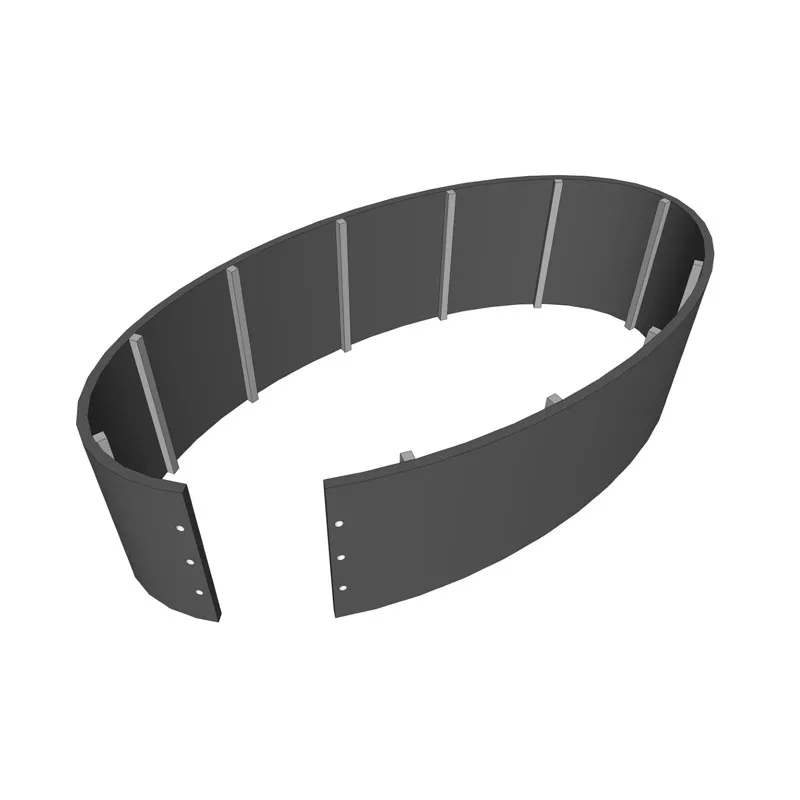

Adjustable Root Director
The Adjustable Root Director is engineered to direct the tree roots, while preventing curbstone and utility damage. The system offers a built-in aeration and irrigation system, and protects the underground utilities while ensuring that all of the urban tree’s needs for healthy growth and development are met.
The system is modular, and can be adjusted to accommodate different planting pit sizes and shapes, in a round or oval shape.
- Material: HDPE
- Material Thickness: 6-8 mm
- Diameter: 4m, adjustable to accommodate the tree pit
- Height: 300-600 mm
